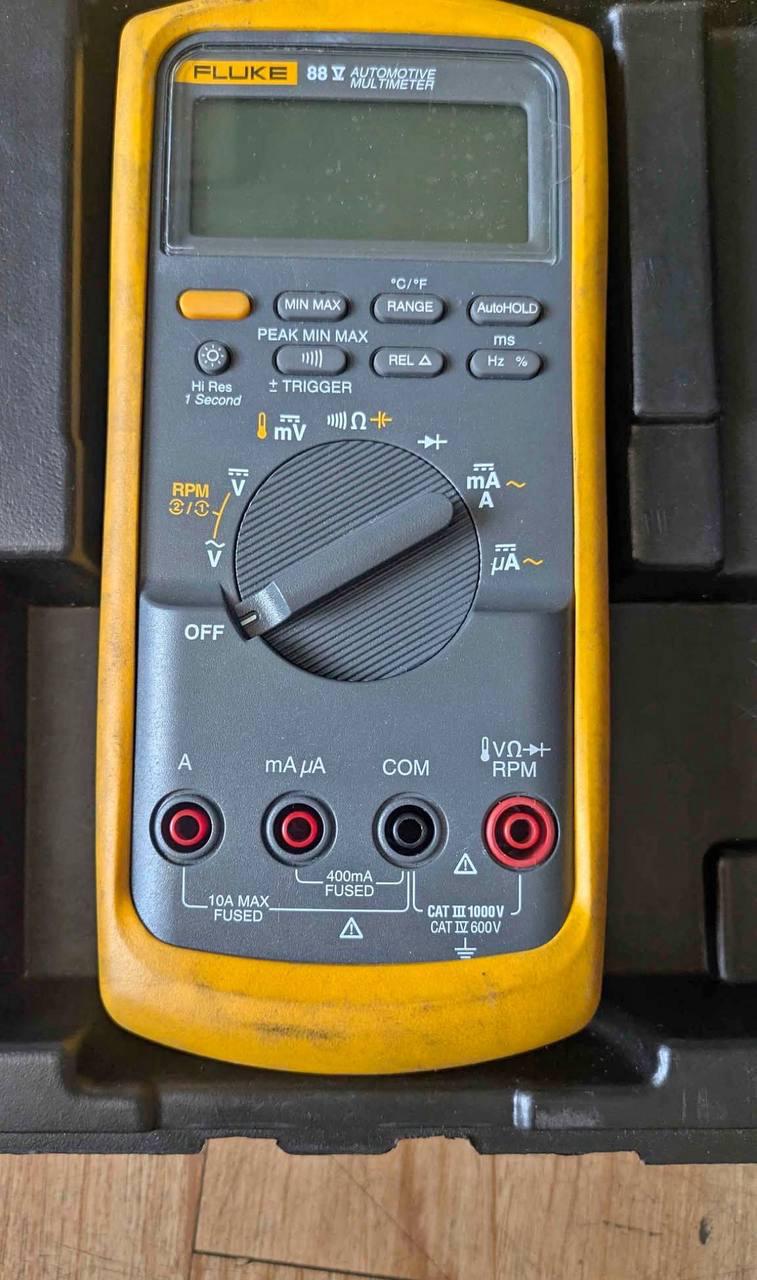

Fluke 88V Automotive Multimeter: The Ultimate Diagnostic Tool for Professionals
Conquer Complex Automotive Diagnostics with Confidence
Fluke 88v automotive multimeter
Fluke 88v automotive multimeter Tired of guessing on tough electrical gremlins? The Fluke 88V Automotive Multimeter is engineered to be the most trusted tool on your bench. Built for the demands of a professional shop, this isn’t just a multimeter; it’s a complete vehicle diagnostic system. When you’re working with industrial-grade equipment and power tools, you need instrumentation you can rely on, and the Fluke 88V delivers unparalleled accuracy and durability.
For all your professional tool needs, from diagnostics to power tools, explore our main collection at BuysPowerToolsSet.com.
Engineered for the Real World: Key Features of the Fluke 88V
This Fluke 88V Automotive Multimeter is packed with features that save you time and money on every job:
-
Permanent RPM/Dwell Function: Accurately measure RPM on all engine types, including diesels and direct-fire ignitions, without a clamp.
-
Automotive-Specific Functions: Dedicated modes for Temperature, Dwell, RPM, and Pulse Width take the guesswork out of sensor and actuator testing.
-
Min/Max Record with 40ms Peak Capture: Find those elusive voltage spikes and drops that cause intermittent problems.
-
Robust, Drop-Tested Design: Withstands the harsh environment of an auto shop, because we know your tools need to be as tough as you are.
-
Complete Fluke 88V Kit: Includes high-quality test leads, thermocouple temperature probe, IC flexible current clamp, and more, so you’re ready for any job right out of the box.
Why Professionals Choose the Fluke 88V Automotive Multimeter
Whether you’re troubleshooting a parasitic draw that’s killing batteries overnight or verifying the output of a complex alternator, the Fluke 88V Automotive Multimeter provides the authoritative data you need. Its intuitive design, backed by Fluke’s legendary reliability, builds immediate trust. This tool is the definitive solution for anyone who considers their automotive work more than just a hobby—it’s a craft.
Ideal For:
-
Professional Automotive Technicians
-
Industrial Equipment Mechanics
-
Advanced DIYers and Restorers
-
Fleet Maintenance Teams
Fluke 88V Automotive Multimeter: Technical Specifications
General Specifications:
-
Safety Rating: CAT III 1000V / CAT IV 600V
-
Display: 6000-count backlit LCD
-
Power Supply: 3 x 1.5V AA Batteries
-
Low Battery Indication: Yes
-
Auto Power Off: Yes (can be disabled)
-
Operating Temperature: -10 °C to +50 °C
-
Storage Temperature: -40 °C to +60 °C
-
Weight: 710 g (1.57 lb) without holster
-
Dimensions (H x W x D): 90 mm x 101 mm x 195 mm (3.5 in x 4.0 in x 7.7 in)
Click Here to Buy the Lincoln Aspect 375 TIG Welder & Check Price
Electrical Measurement Ranges & Accuracy:
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 0.1 mV to 1000 V | ±(0.2% + 2) |
| AC Voltage | 0.1 mV to 1000 V | ±(1.5% + 3) |
| DC Current | 0.1 µA to 10 A | ±(0.5% + 2) |
| AC Current | 0.1 µA to 10 A | ±(1.5% + 3) |
| Resistance | 0.1 Ω to 50 MΩ | ±(0.3% + 2) |
| Capacitance | 0.01 nF to 9999 µF | ±(1.5% + 5) |
| Frequency | 0.01 Hz to 200 kHz | ±(0.1% + 3) |
| Duty Cycle | 0.1% to 99.9% | ±(0.2% + 2) |
| Temperature (w/ probe) | -250 °C to +1100 °C | ±(1.0% + 3°C) |
Automotive-Specific Functions:
| Function | Range / Capability | Details |
|---|---|---|
| RPM (Gasoline) | 2 to 12 cylinders | Measures via inductive pickup or secondary ignition voltage. |
| RPM (Diesel) | 2 to 12 cylinders | Measures via inductive clamp on injector pulse. |
| Dwell | 0 to 120° | For contact point and electronic ignitions. |
| Pulse Width | 0.1 ms to 999.9 ms | Measures fuel injector pulse width. |
| Peak Min/Max | 40 ms capture | Captures transient voltage spikes and drops. |
| Diode Test | Yes | Test voltage ~1.5 V. |
| Continuity | Yes | Audible beeper with < 10 Ω threshold. |

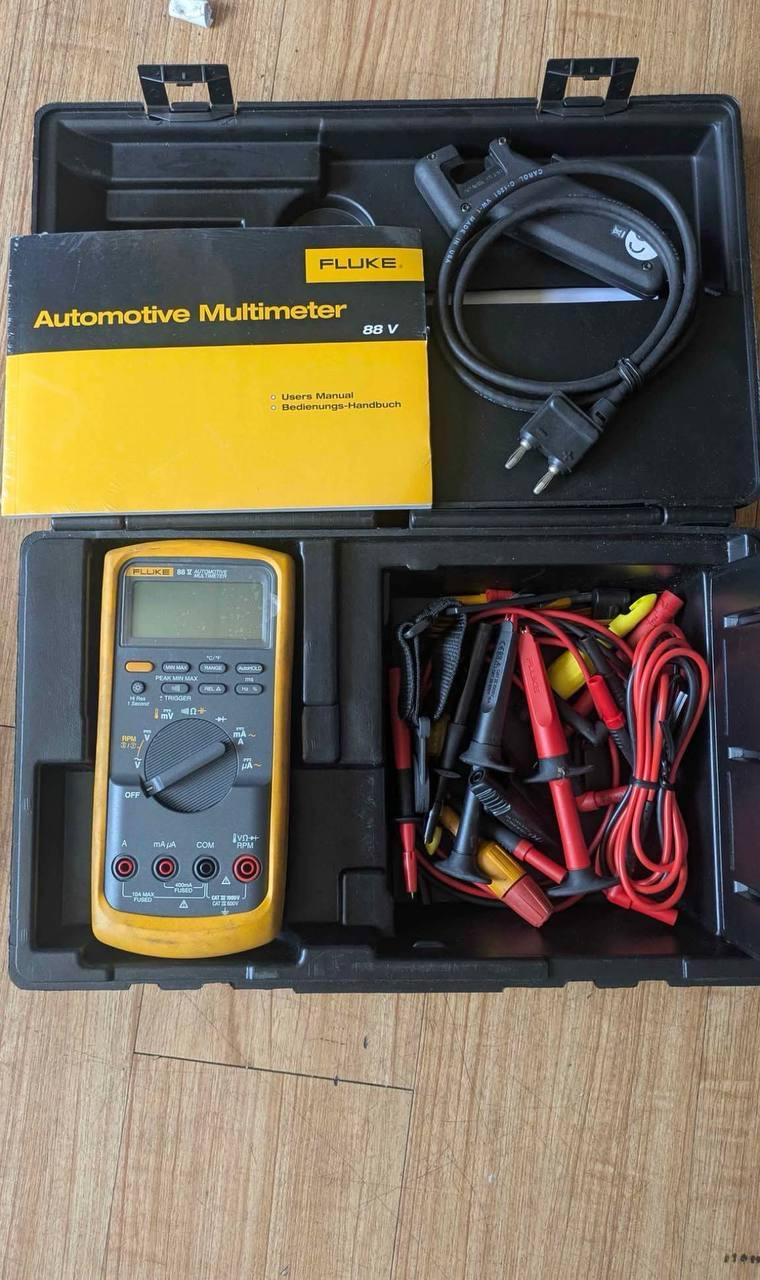

What’s Included in the Fluke 88V Kit:
The Fluke 88V Kit is a complete diagnostic set that includes:
-
Fluke 88V Automotive Multimeter
-
TL225 Test Leads with Alligator Clips
-
TP88 Temperature Probe
-
AC280 Flexible Current Clamp (for RPM/Diesel and AC/DC current)
-

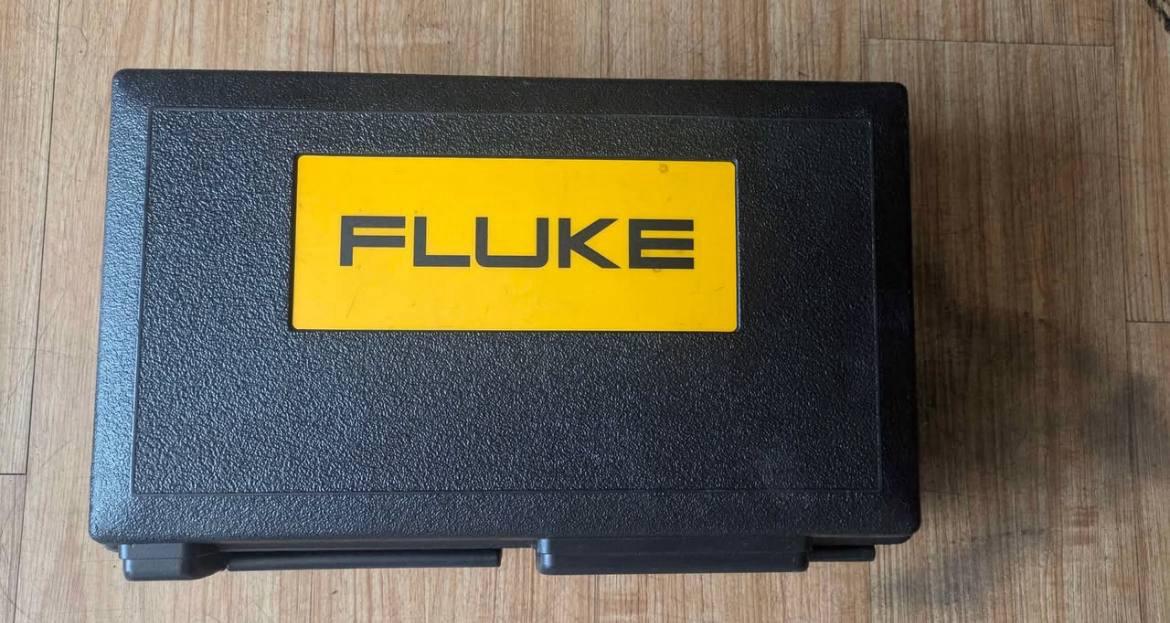

BX2200 Carrying Case (rugged, molded)
-
User Manual (Fluke 88V Manual)
Why These Specs Matter for Your Work:
-
CAT III 1000V Safety Rating: Provides critical protection when working on high-energy vehicle systems like hybrid and electric vehicle battery packs.
-
40ms Peak Capture: Allows you to find the intermittent voltage glitches that cause “no problem found” diagnoses.
-
Diesel RPM Capability: Makes this an essential automotive diagnostic tool for diesel engines, heavy trucks, and industrial equipment.
-
Complete Kit: The included Fluke 88V with accessories means you have everything needed for advanced electrical and sensor diagnostics right out of the box.
Upgrade Your Toolkit with Precision
Don’t just test—diagnose with absolute certainty. The detailed specs of the Fluke 88V Automotive Multimeter confirm it’s built for the most demanding professional environments.
Click Here to View the Fluke 88V Price & Full Feature List at BuysPowerToolsSet.com
Ready to Experience the Fluke Difference?
Stop struggling with inadequate test equipment. Upgrade your diagnostic capabilities with the industry-standard Fluke 88V Automotive Multimeter.
Click Here to Check the Fluke 88V Price & Buy Yours Today!
P.S. Have questions about integrating this meter into your workflow or need other heavy-duty equipment? Connect with our community of pros on our Facebook Page for Industrial Equipment for tips and support
